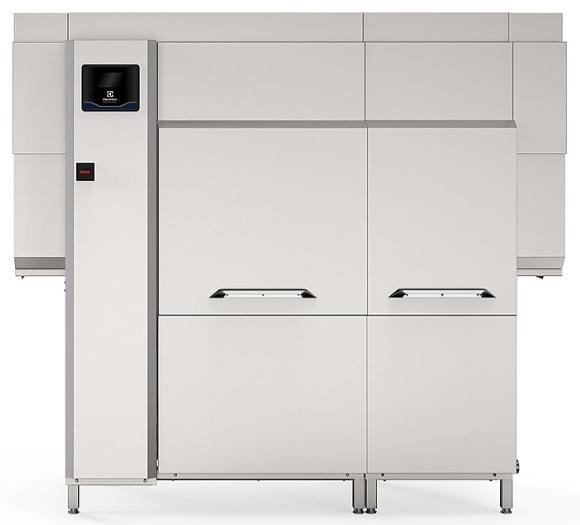

Electrolux green&clean 535104 Rack-Type Πλυντήριο 26,7kW, με Διπλό Ξέπλυμα, Συσκευή Εξοικονόμησης Ενέργειας, 200r/h, R>L

Product Features

Main Features

• IP25 protection against water jets, solid objects and small animals (larger than 6 mm).
• Intuitive touch screen control panel features userfriendly display to easily operate the machine and to monitor machine status. Three different levels of interaction are available each show relevant messages and information to the operator, the general maintenance staff and the authorized service partners.
• All internal components: wash and rinse arms, tank filters, curtains can be easily removed for cleaning.
• Unit equipped with USB port making it simple to read data such as machine identification, counters and consumption, components, devices and alarm logs. Machine parameters can be uploaded and downloaded and firmware updated.
• Built-in drain valve in the tanks allows automatic dump and fill to refresh the water in the tank without any interruption of the washing process.
• CLEAR BLUE filtering system removes soil from the wash water providing cleaner water and highly active detergent thus ensuring better washing performance and lower running costs.
• Pre-wash section uses cold water so food remains are not "baked" onto the plates in order to have better pre-wash performance.
• Adjustable feet for full access underneath the machine for cleaning.
• Large counter balanced inspection door allow unrestricted all-round access to the wash and rinse area. Door is insulated with injected foam. This adds strength as well as reduces noise and heat loss.
• Automatic drain, clean and sanitize cycles featured as standard. The internal chamber, is completely cleaned or sanitized avoiding bacteria proliferation for maximum hygiene and reducing manual work/time for operator.
• Three conveyor speeds can be selected through the control panel by the operator and customized on-site.
• The unit is ready to be connected with OnE Connectivity for 24/7 real time monitoring, increasing equipment uptime, maximum profit and optimizing your process.
• Maximum capacity per hour of 200 racks easy to switch to DIN 10510 compliant or other speed.
• Built-in WASH-SAFE CONTROL system raises water temperature to 85°C to sanitize the rinse water. No external boiler is required. Built-in air break and rinse booster pump ensure constant temperature and pressure throughout the rinsing cycle regardless of the inlet water condition.

Construction

• Dishwasher structure is held together with a solid 50 x 50 mm stainless steel frame to provide longterm sturdiness.
• All electric components are put in one IP65 central box isolated from water and steam to ensure high reliability.
• External pre-arrangement for inlet water, drain water, detergent & rinse aid connections for fast and easy installation on both sides of the unit.
• All main components made in heavy duty anti-corrosive 304 type stainless steel: external front, side panels and internal chambers, wash and rinse arms, doors and rack transportation system.
• Modularity design allows the machine not only be disassembled for delivery and re-assembled at customer’s site, but also to be customized and upgraded on-site and over time.
• Deep drawn pressed wash tank with fully rounded corners, sloped towards the drain to prevent dirt buildup, provides fast drainage in just a few minutes. With no welding points the pressed tank offers a guaranteed water tight solution.

Sustainability

• ZERO LIME Device as a fully automatic cycle ensures total scale removal from the boiler, the hydraulic circuit, the washing chamber and the rinsing chamber allowing ultimate performances and lower energy consumption thanks to highly efficient heating elements.
• Auto-start/stop equipped in different zones ensures that the zone runs only when a rack is passing through it. This reduces water, energy, chemical consumption and noise.
• All chambers without internal pipes and therefore no hidden dirt traps.
• Built-in stabilized pressure valve ensures constant pressure throughout the rinsing cycle regardless of inlet water pressure.
• Self-draining vertical wash pumps provide maximum hygiene.
• Automatic back-up mode is activated when a failure occurs. Guided troubleshooting for fast fixes including 150 precises notifications and 23 easy-to-follow processes.
• Built-in Energy Saving Device (ESD) captures the hot steam released on the sides of the machine to heat up incoming cold water before entering to the boiler, thus saving energy and reducing heat emission from the machine.
• Dual rinse with air break and rinse booster pump guarantees rinse water consumption of 0.9 liters/rack regardless of inlet water pressure to ensure low energy, water, detergent and rinse aid consumption.
